UL L570, UL L589, UL M502, UL M506, UL M532, UL M535

Stc
62
Fire Rating
1 Hour
System Thickness
15.785"

Stc 62
Fire Rating 1 Hour
System Thickness 15.785"

(127.74 KB PDF)

(161.38 KB DWG)

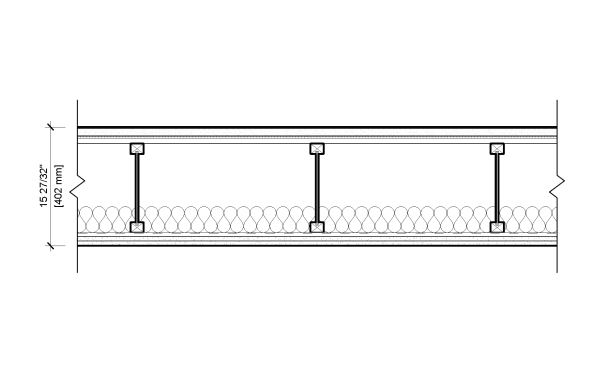

Assembly Details

Finish Flooring

0.1" [2.5 mm] Sheet Vinyl (by others) with 0.04" padded backer
Floor underlayment panels

Two 1/4" [6.3 mm] USG Fiberock® Brand Interior Panels
Sound Attenuation Mat

5/16" [8 mm] KINETICS® Soundmatt Sound Control Underlayment
Structural Cement-Fiber Unit

3/4" [19 mm] STRUCTO-CRETE® PANEL (UL TYPES USGSP, STRUCTO-CRETE)
Structure

6" [152 mm] W6 x 9, min size, 50 ksi steel OR min 6" [154 mm] Hollow Structural Sections (HSS) with 50 ksi steel
Structure

6" [154 mm] Steel "C"Joist @ 24" [610 mm] o.c.
Insulation

3-1/2" [89 mm] Knauf EcoBatt R-13 glass fiber batt insulation
Wire Netting

Hexagonal Wire Netting
Structure

3/4" [19 mm] Steel plate, minimum 4" [101.6 mm] by 4" [101.6 mm] by 3/4" [19 mm] thick. Attached to structure per UL.
Structure

4" [101.6 mm] W4 x 13, min size, 50 ksi steel min. Hollow Structural Sections (HSS)
Structure

4" [101.6 mm] Steel "C"Joist @ 24" [610 mm] o.c.
Resilient Channel

1/2" [12.7 mm] resilient channel, 25 ga. (0.018"), spaced 12" [305 mm] O.C. max.
Gypsum Panel

5/8" [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)

Notes

View assembly information on UL Website.
