UL Assemblies / Wall / UL U419

UL U419
Interior Partitions, Steel Stud (Non-Load-Bearing)

  • Stc

    48

  • Fire Rating

    2 Hour

  • System Thickness

    5"
  • Stc 48
  • Fire Rating 2 Hour
  • System Thickness 5"
PDF
(107.30 KB PDF)
REVIT
(1.90 MB RVT)

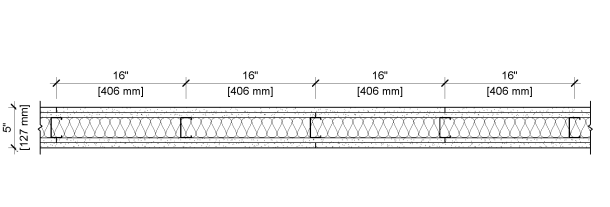

Assembly Details
  • Gypsum Board
    2 Layers of 5/8" [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
  • Steel Studs
    2-1/2" [64 mm] steel studs, EQ20 (0.018"), 16" [406 mm] O.C.
  • Insulation
    2-1/2" [64 mm] Performance+® EcoBatt® Insulation
  • Gypsum Board
    2 layers of 5/8" [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Notes
View assembly information on UL Website.
Compatible Products
Available insulation products for UL U419.
Performance+® EcoBatt® Insulation
Quality engineered thermal and acoustical fiberglass batt insulation with innovative ECOSE® technology is ideal for floors, walls, ceilings and attics.
Applications
Attics, Ceiling, Floor, Mid-Floor, Sound Control, Walls
Thickness
2.5" - 13.75"
R-Value
R-8 - R-49
Width
11" - 24"
View Product
